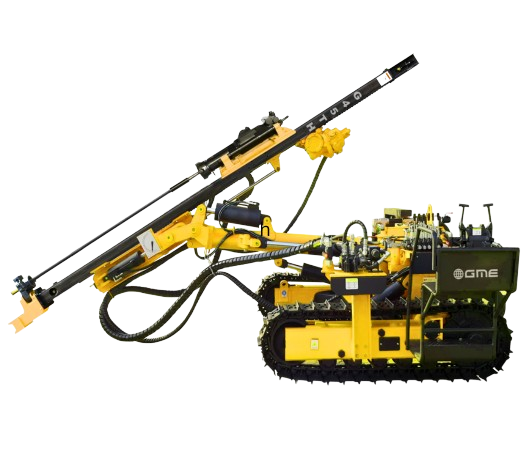

G45 TH - Crawler Drill

G45TH is a high air pressure surface downhole rig that offers exceptional performance and reliability. Being powerful and adaptable, this equipment offers user-friendly operation and simple maintenance. This Tool is interchangeable with Atlas Copco CM341.

Specifications

Metric
Imperial

Description	Metric
Total Length	5750mm
Total Height	2430mm
Overall Width	2480mm
Floor Clarity	254mm
Claw Width	260mm
Transport Speed	3 kilometers per hour
Propulsion Engine	8.2 kilowatts
Hydraulic Pump Motor	5.6 kilowatts
Feed Motor	3.7 kilowatts
Total Weight	4.8 tons

Description	Imperial
Total Length	226 inches
Total Height	95.5 inches
Overall Width	98 inches
Floor Clarity	10 inches
Claw Width	10.25 inches
Transport Speed	2 mph
Propulsion Engine	11 hp
Hydraulic Pump Motor	7.5 HP
Feed Motor	5 hp
Total Weight	1056 Pounds.

Benefits

The G45TH is designed for both quarries and open pit mining.
Pneumatic traction motors
Equipped with a tow hook.
Single section boom design
Hydraulic track oscillation
Side control panels for drilling.
Lateral controls for movement and positioning
Additional air outlet for cleaning or operating pneumatic tools such as grinding equipment

Model	Hole dia (DTH)	Hole depth (DTH) max	Weight
G45 DTH - Crawler Drill	105 - 127mm	15 m	4800 kg
G35 DTH - Crawler Drill	115-121 mm	15 m	2695 kg
G35 TH - Crawler Drill	46 - 76 mm	6 - 18 m	2580 kg
G40 DTH - Crawler Drill	115 -121 mm	15 m	2885 kg
G40 TH - Crawler Drill	46 -76 mm	6 -18 m	2770 kg

Model	Hole dia (DTH)	Hole depth (DTH) max	Weight
G45 DTH - Crawler Drill	4.13 - 5 in	50 ft	10582 Pounds
G35 DTH - Crawler Drill	4.5 - 4.75 in	50 ft	5941 LBS
G35 TH - Crawler Drill	1.75 - 3 in	20 - 60 ft	5687 LBS
G40 DTH - Crawler Drill	4.5 - 4.75 in	50 ft	6360 LBS
G40 TH - Crawler Drill	1.75 - 3 in	20 - 60 ft	6106 LBS
