GLX1 Hydraulic Drifter

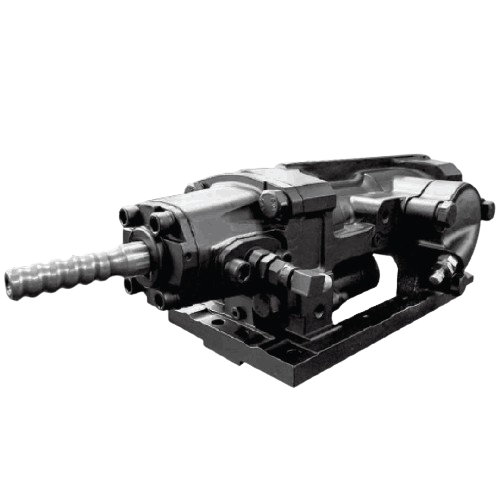

The GME GLX1 Hydraulic Drifter is a small but powerful float. It has a low profile and comes with built-in air wash (water wash optional). It is ideal for heavy duty DSI drilling applications including foundation drilling, road cutting, trenching, bolting and line drilling in dimensional stone quarries. Biodegradable oils can be used for both hydraulic and stem lubrication to reduce environmental impact. It can be used in dimension stone industry, stone quarries and underground mining industry.

Benefits of GLX1 Hydraulic Drifter

Built-in air flush (optional water flush)
Compact size and low profile height
Biodegradable oils can be used to reduce environmental impact
Ideal for heavy-duty DSI drilling applications including foundation drilling, road cutting, trenching, bolting and line drilling in dimensional stone quarries.
Parts interchangeable with Sandvik HLX1 Hydraulic Drifter

Specifications

Metric
Imperial

Description	Metric
Weight	53 kilograms
Drilling Hole Diameter	22-45 millimeters
Length	488 millimeters
Power Class	6.5 kilowatts
Handle Size	R23/R25/R28
Operating pressure Percussion	100 - 180 Bars
Percussion Rate	70 - 88Hz
High Pressure	50 Bars
Low Pressure	4 Bars
Air Pressure	3-5 Bars
Washing Pressure (Air/Water)	Max.5 Bars
Oil Consumption	50 - 100 Grams Per Hour
Drilling Steels	H25 Drift Rods
Rotation Motor Type	OMM32, OMM50
Filling Valve	Vg8 DIN7756
Accumulator Gas	Nitrogen N2

Description	Imperial
Weight	116,845 Pounds
Drilling Hole Diameter	0.86-1.77 Inch
Length	19.21 inches
Power Class	8.7 HP
Handle Size	R1 in. / R1-1/8 in.
Operating pressure Percussion	1450-2610psi
Percussion Rate	4200-5280RPM
High Pressure	725 PSI
Low Pressure	58PSI
Air Pressure	43.5-72.5 PSI
Washing Pressure (Air/Water)	72.5 PSI
Oil Consumption	0.05-0.10 l/h
Drilling Steels	H25 Drift Rods
Rotation Motor Type	OMM32, OMM50
Filling Valve	Vg8 DIN7756
Accumulator Gas	Nitrogen N2

Model	Chuck Size	Weight	Power Class	Percussion rate	Operating pressure, percussion	Rotation motor type	Max. flushing pressure (air / water)
GHD5 Hydraulic Drifter		210 Kg	20kW	67Hz	120 - 220 bar 175 bar	WHO 80, WHO 125 or WHO 160
GHD1838HD+ Hydraulic Drifter		175 kilograms	18 KW
GEX1	22x108 mm	50 kg	6.5 kW	70-88 Hz	100 - 180 bar	OMM32	5 bar
GHD106 Hydraulic Drifter		52Kg		65 - 85 Hz		OMM20, OMM32, OMM50
