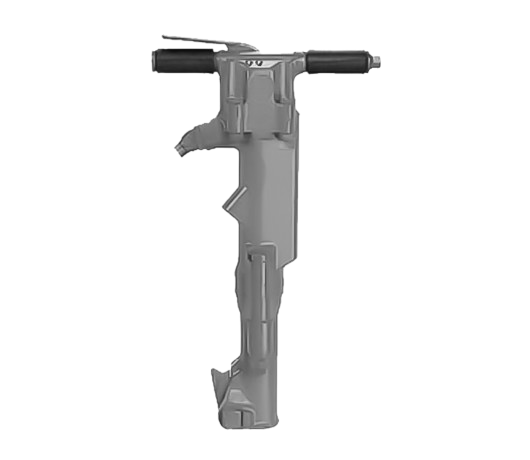

GEX1260 - Breaker

The GEX1260 breakers deliver increased power and a lighter design compared to the previous GEX1230 model. Engineered for heavy-duty performance, these durable tools excel in challenging construction and plant maintenance tasks, such as breaking reinforced concrete, tackling heavy roadwork, cutting through tarmac, frozen ground, non-consolidated rock, and handling general demolition work.

Specifications

Metric
Imperial

Description	Metric
Weight with silencer	31 kg
Weight without silencer	29 Kg
Length	680 mm
Air pressure	6 bar
Air consumption	34.5 l/s
Blows per minute	1300
Air inlet	19 mm
Shank size (standard )	32 x 160 mm
Chuck size (option)	28 x 160 mm
Retainer type	Latch

Description	Imperial
Weight with silencer	68 lb
Weight without silencer	64 lb
Length	26.7"
Air pressure	87 psi
Air consumption	73 cfm
Blows per minute	1300
Air inlet	³/?"
Shank size (standard )	1¼” x 6¼”
Chuck size (option)	1 ?" x 6¼”
Retainer type	Latch

Benefits

Reduces maintenance costs with a design focused on durability and efficiency.
Built to withstand harsh and rugged environments, ensuring reliable performance.
Continuous lubrication system guarantees smoother operation over time.
Extends component life, helping to lower overall maintenance expenses.
Enhanced maneuverability for easier handling and improved user control.
Fully compatible with Chicago Pneumatic CP1260 parts for seamless integration and replacement.

Model	Chuck Size	Weight
GEX1210	25 x 108 mm	20.0 kg
GEX1210-1	25 x 108 mm	20.0 kg
GEX1230	32 ×160 mm	31.0 kg
GEX1230-1	32×160 mm	31.0 kg
GEX1240	32 ×160 mm	37.5 kg
GEX1240-1	32×160 mm	37.5 kg
GEX117	32 ×160 mm	35.0 kg
GEX117L	32×160 mm	38.0 kg
GEX1290	32 x 160 mm	39 kg

Model

Chuck Size

Weight

GEX1210

25 x 108 mm

20.0 kg

GEX1210-1

25 x 108 mm

20.0 kg

GEX1230

32 ×160 mm

31.0 kg

GEX1230-1

32×160 mm

31.0 kg

GEX1240

32 ×160 mm

37.5 kg

GEX1240-1

32×160 mm

37.5 kg

GEX117

32 ×160 mm

35.0 kg

GEX117L

32×160 mm

38.0 kg

GEX1290

32 x 160 mm

39 kg

Model	Chuck Size	Weight
GEX1210	1 x 4 1/4 in	44.0 lb
GEX1210-1	1 x 4 1/4 in	44.0 lb
GEX1230	1 1/4 X 6 1/4 in	68.0 lb
GEX1230-1	1 1/4 X 6 1/4 in	68.0 lb
GEX1240	1 1/4 X 6 1/4 in	82.6 lb
GEX1240-1	1 1/4 X 6 1/4 in	82.6 lb
GEX117	1 1/4 X 6 1/4 in	77.0 lb
GEX117L	1 1/4 X 6 1/4 in	83.6 lbs
GEX1290	1¼” x 6¼”	86 lb

Model

Chuck Size

Weight

GEX1210

1 x 4 1/4 in

44.0 lb

GEX1210-1

1 x 4 1/4 in

44.0 lb

GEX1230

1 1/4 X 6 1/4 in

68.0 lb
