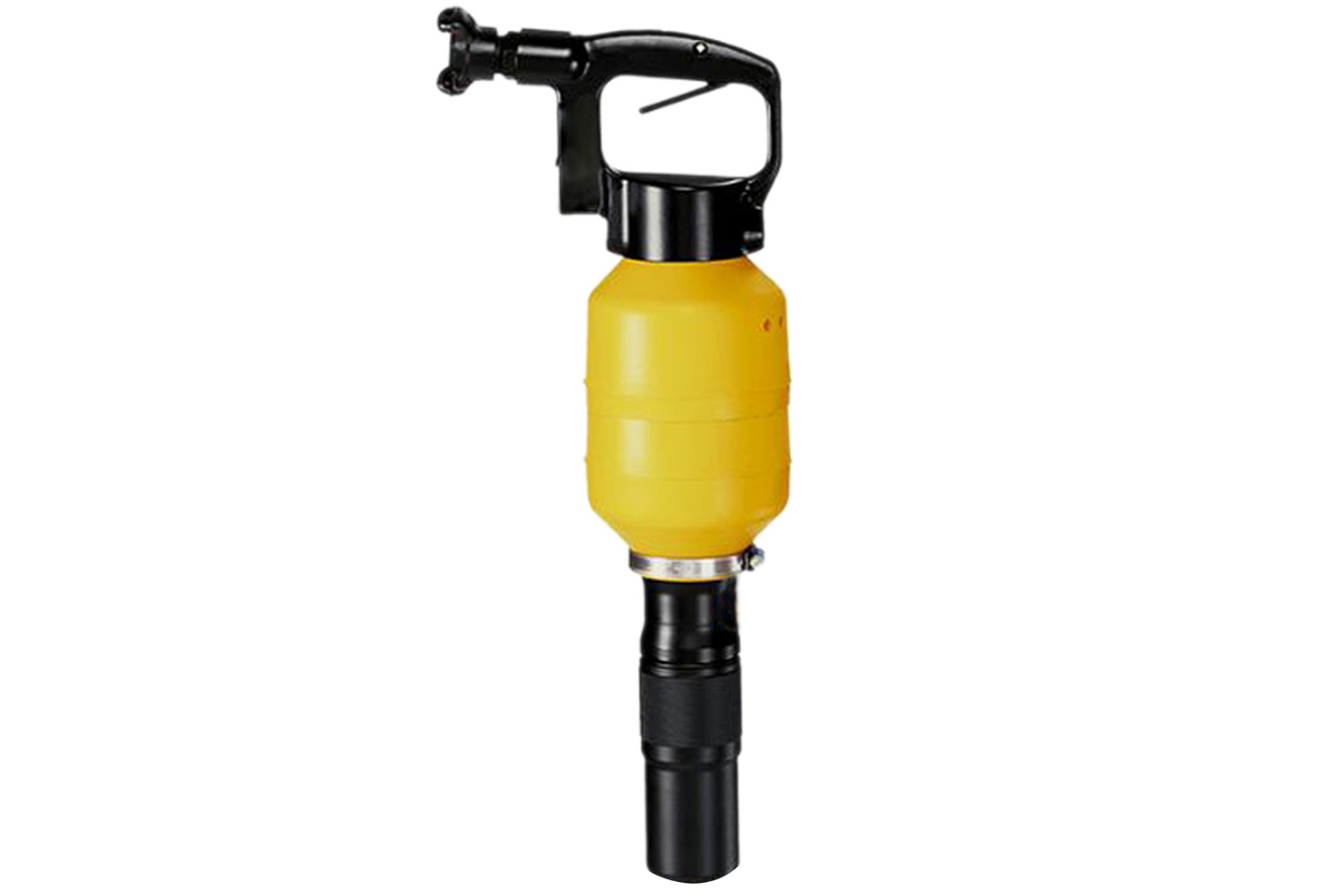

The GEX12PS pneumatic pick hammer (also known as "Martillo Picadore" in Spanish) is a lightweight and versatile pneumatic hammer. It comes with a D-type handle for easy maneuverability and to enable operators to reach tight spaces at challenging orientations. It also has a built-in air cushioning system to reduce drill vibration and prolong drill life by eliminating metal-to-metal contact. The effective silencer reduces noise emission to meet international noise directive standards. The two-step trigger helps keep the chisel in place for precise cuts.
Description | Metric |
---|---|
Weight | 10.5 kg |
Length | 550 mm |
Air Consumption | 21.3 l/s |
Shank Size | 22 mm x 82.5 mm |
Shank Size | 25 mm x 75 mm |
Impact Rate | 1600 BPM |
Description | Imperial |
---|---|
Weight | 23.1 lb |
Length | 21.7 in |
Air Consumption | 0.75 cfm |
Shank Size | 7/8 X 3 1/4 in |
Shank Size | 1/3 in |
Impact Rate | 1600 BPM |
Model | Chuck Size | Weight |
---|---|---|
GEX09P/ GEX09PR | 22x82.5 mm | 10.0 kg |
GL33 | 21x12 mm | 5.50 kg |
GL37 | 23x14 mm | 8.50 kg |
Model | Chuck Size | Weight |
---|---|---|
GEX09P/ GEX09PR | 7/8x3 1/4 in | 22.00 lb |
GL33 | 0.826 x 0.472 in | 12.12 lb |
GL37 | 0.905x0.551 in | 18.73 lb |
