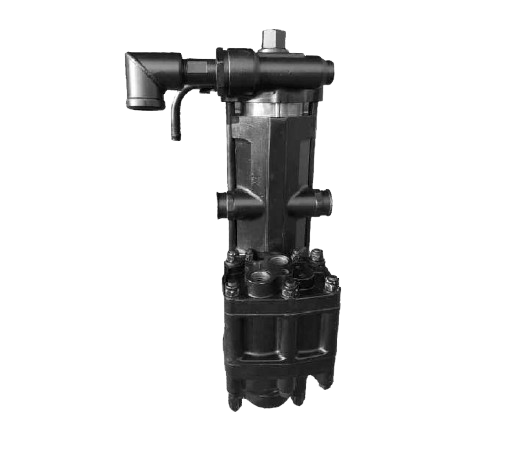

G36IR - Pneumatic Drifter

The GME G36IR drifter is the industry-leading pneumatic drifter for both surface & underground applications. It is designed for deep hole drilling when mounted on suitable screw or chain feed systems. It provides exceptional penetration rate with low air consumption. It is equipped with a powerful, independent, gear-type rotation motor which delivers high torque. The independent hammer & rotation systems allow adjusting the two precisely as per requirements and easy coupling & decoupling of drill steels. It also has an internal lubrication system for prolonged drill life.

Specifications

Metric
Imperial

Description	Metric
Chuck Size	44 mm (1 3/4"), 4 dog
Weight	150 kg
Lenght	1015 mm
Stroke Lenght	86 mm
Air Consumption	212 l/s
Rotation Torque	320 n-m
Bore Diameter	35 mm – 89 mm
Max Reamed Diameter	127 mm
Max Drilling Depth	46 m
Impact Rate	1630 BPM
Air Connection	¼ in BSP
Rotation Motor	1in BSPT

Description	Imperial
Chuck Size	44 mm (1 3/4"), 4 dog
Weight	330 lb
Lenght	40 in
Stroke Lenght	3? in
Air Consumption	450 cfm
Rotation Torque	236 ft-lbs
Bore Diameter	1? in – 3½ in
Max Reamed Diameter	5 in
Max Drilling Depth	150 ft
Impact Rate	1630 BPM
Air Connection	¼ in BSP
Rotation Motor	1in BSPT

Benefits

The G36IR provides exceptional performance through fast penetration rates, high durability, and efficient air consumption. It utilizes a powerful, independent gear type rotation motor with high-torque for use in a wide variety of ground conditions.
The G36IR uses premium materials, machined to exacting specifications to deliver high performance and exceptional durability.
The G36IR rock drill is based on a time-tested, marketleading drifter design.
The G36IR is ideal for both underground and surface applications. It is designed for multiple mounting applications and can be operated in a variety of conditions and orientations.
The G36IR drill is designed to accommodate either wet or dry drilling without compromise.
The G36IR incorporates an external feed, internally distributed lubrication system to deliver atomized oil to key components for longer life.
Parts interchangeable with Boart Longyear S36IR
