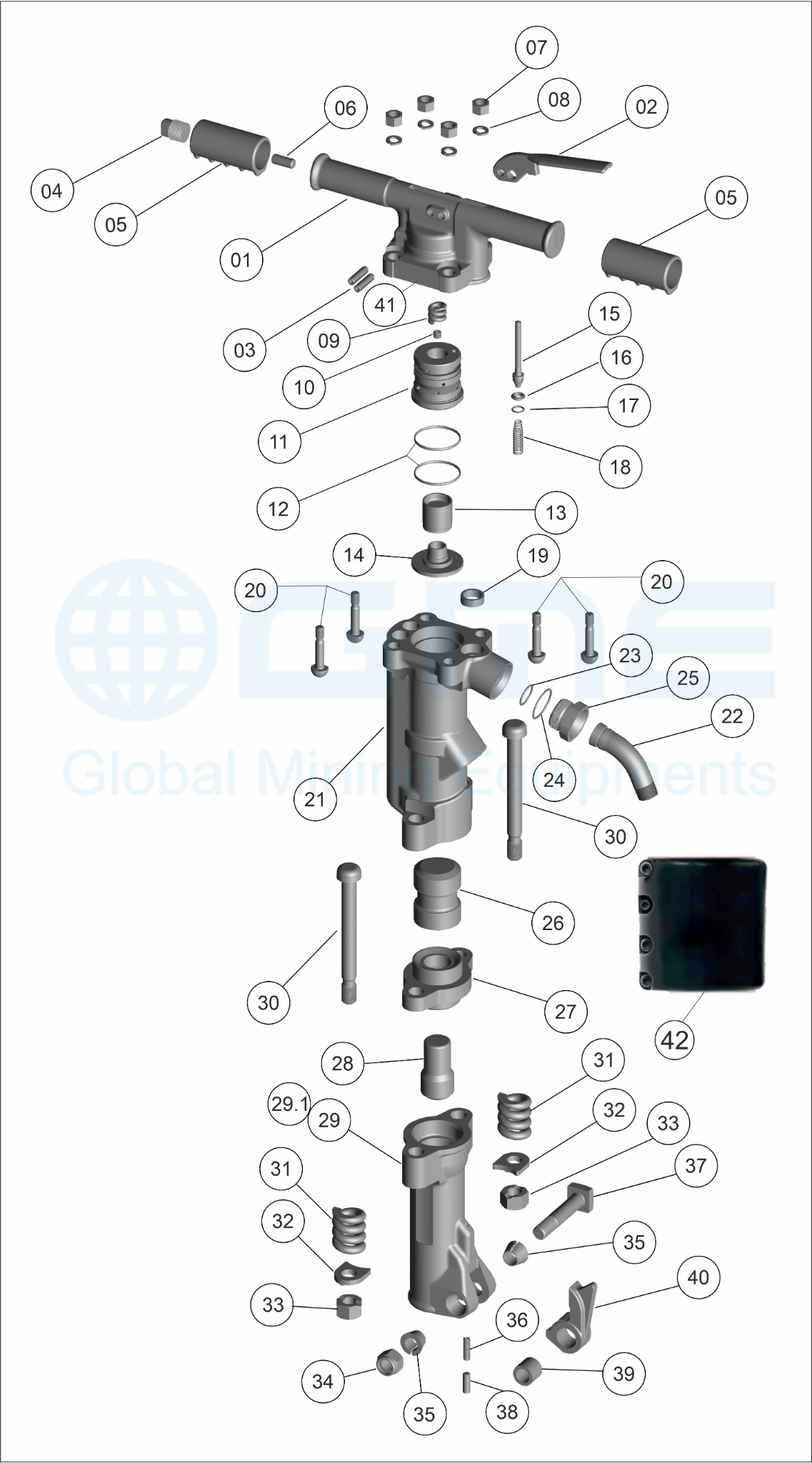

SN.	OEM Part No	Part No.	Description English	Qty.
1	-	-	Back Head	1
2	F814725	GF814725	Throttle Lever	1
3	R133433	GR133433	Thrttle Lever Pin	2
4	R075031	GR075031	Oil Plug	1
5	F816345	GF816345	Rubber Grip	2
6	C036901	GC036901	Plug Oil Regulater	1
7	R006131	GR006131	Back Head Bolt Nut	4
8	P006239	GP006239	Lock Washer	4
9	R047961	GR047961	Valve Case Spring	1
10	R068064 | P009876	GR068064 | P009876	Pipe Plug	1
11	R047958	GR047958	Valve Case	1
12	R049854	GR049854	O-ring	2
13	R047959	GR047959	Valve	1
14	R047960	GR047960	Valve Case Lid	1
15-17	R092894	GR092894	Throttle Valve Com.(SN 15,16,17)	1
15	-	-	Throttle Valve	1
16	R098368	GR098368	Throttle Valve Seal	1
17	R098369	GR098369	Throttle Valve Retaining Ring	1
18	R005717	GR005717	Spring Throttle Valve	1
19	R047965	GR047965	Cylinder Seal	1
20	R047962	GR047962	Back Head Bolt	4
21	C8549445	GC8549445	Cylinder	1
22	R085269	GR085269	Air Inlet Swivel	1
23	R110317	GR110317	O-ring	1
24	P103521	GP103521	O-ring	1
25	R000530	GR000530	Air Inlet Swivel Nut	1
26	R047967	GR047967	Piston	1
27	R047966	GR047966	Anvil Block Bushing	1
28	R085260	GR085260	Anvil Block	1
29	R047969	GR047969	Latch Type Front Head
			(1 1/4" Hex X 6 1/4" Long)	1
30	R047970	GR047970	Front Head Bolt	2
31	R047971	GR047971	Front Head Bolt Spring	2
32	R090584	GR090584	Front Head Bolt Lock Nut	2
33	R005721	GR005721	Front Head Bolt Nut	2
34	P008999	GP008999	Nylock Nut	1
35	R076562	GR076562	Latch Retainer Bolt Bushing	2
36	R086982	GR086982	Retainer Latch Plunger Spring	1
37	R076853	GR076853	Latch Retainer Bolt	1
38	R092497	GR092497	Retainer Latch Plunger	1
39	R055818	GR055818	Retainer Latch Bushing	1
40	R092493	GR092493	Retainer Latch	1
41			Data Plate	1
Optional Parts:
SN.		Part No.	Description English	Qty.
29.1	R047968	GR047968	Latch Type Front Head (1 1/8" Hex X 6 1/4" Long)	1
42		-	Muffler	1
