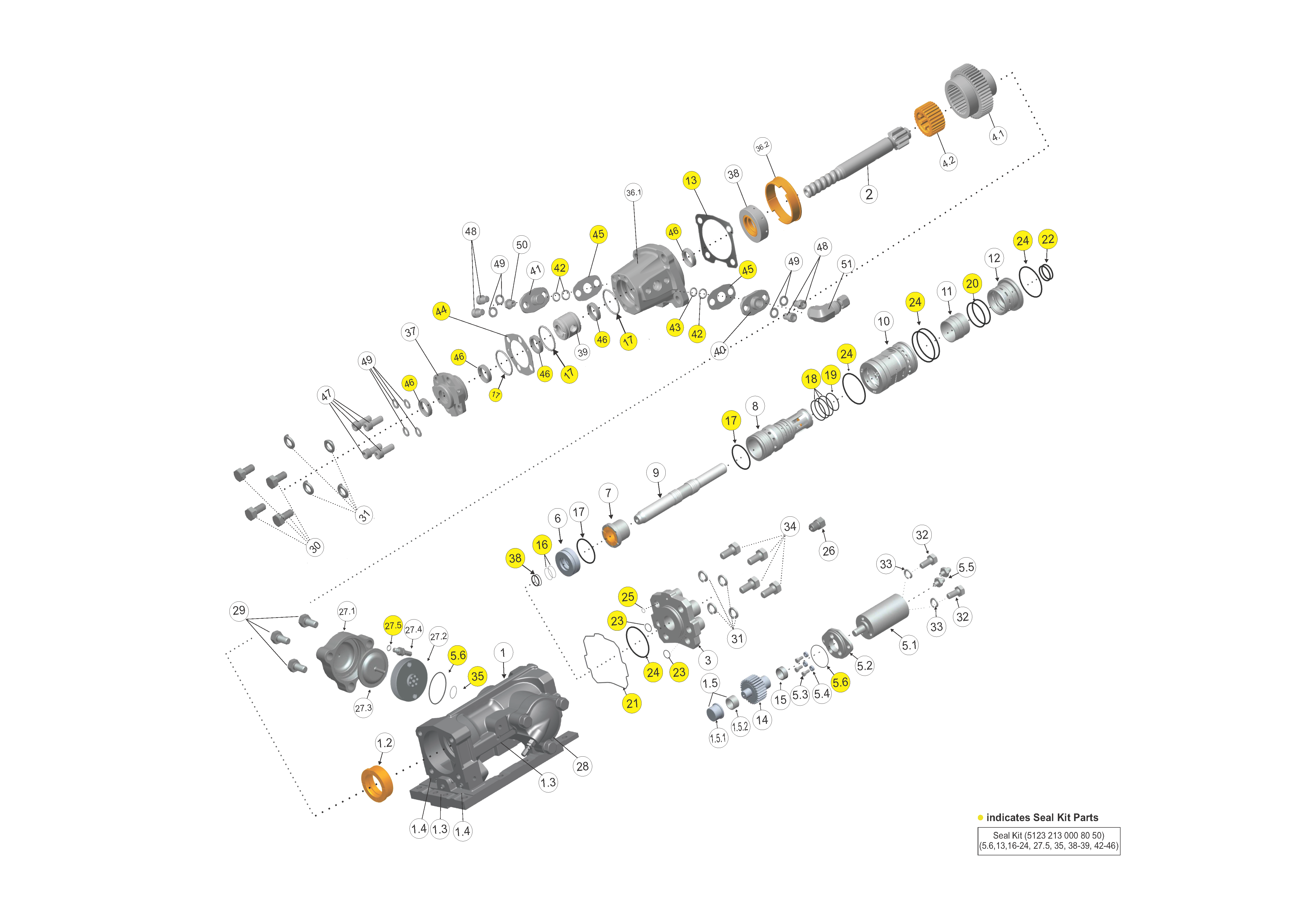

SN	OEM PART NO.	PART NO.	DESCRIPTION	QTY.
1	-	-	Body Assembly	1
1.2	550 120 40	G550 120 40	Bearing Bushing	1
1.3	865 683 09	G865 683 09	Plug	3
1.4	865 791 99	G865 791 99	Hexagon Socket Set Screw	2
1.5	550 257 94	G550 257 94	Housing Assembly	1
1.5.1	550 257 93	G550 257 93	Bearing Housing	1
1.5.2	550 121 65	G550 121 65	Needle Bearing	1
2	7802 7567 01	G7802 7567 01	Shank Adapter	1
3	550 575 64	G550 575 64	Rear Cover	1
4.1	B006 45284 50	GBG006 45284 50	Bushing Rotation	1
4.2	550 219 42	G550 219 42	Coupling	1
5	550 214 21	G550 214 21	Hydraulic Motor Assembly	1
5.1	550 214 20	G550 214 20	Hydraulic Motor	1
5.2	550 120 65	G550 120 65	Flange	1
5.3	550 214 03	G550 214 03	Hexagon Socket Head Screw	3
5.4	851 281 89	G851 281 89	Double Lock Washer	3
5.5	856 040 09	G856 040 09	Straight Thread Adaptor	2
5.6	814 017 49	G814 017 49	O-Ring	3
6	551 785 16	G551 785 16	Seal Houshing	1
7	550 126 81	G550 126 81	Bearing Houshing Complete	1
8	550 122 64	G550 122 64	Cylinder Complete	1
9	550 126 08	G550 126 08	Piston	1
10	550 214 58	G550 214 58	Cylinder	1
11	550 154 62	G550 154 62	Distributor	1
12	550 125 41	G550 125 41	Cylinder	1
13	550 214 54	G550 214 54	Gasket Plate	1
14	550 263 32	G550 263 32	Gear Wheel	1
15	550 121 64	G550 121 64	Spherical Roller Bearing	1
16	551 785 12	G551 785 12	Rod Seal	1
17	428 702 10	G428 702 10	O-Ring	5
18	855 206 89	G855 206 89	O-Ring	3
19	550 215 36	G550 215 36	O-Ring	1
20	550 091 05	G550 091 05	O-Ring	2
21	550 279 79	G550 279 79	O-Ring	1
22	550 141 13	G550 141 13	Piston Seal, Rear	2
23	550 262 05	G550 262 05	O-Ring	2
24	800 805 39	G800 805 39	O-Ring	5
25	550 262 05 50	G550 262 05 50	O-Ring	1
26	881 140 79	G881 140 79	Plug	1
27	152 376 88	G152 376 88	HP Accumulator	1
27.1	144 521 48	G144 521 48	Battery Cover	1
27.2	154 024 18	G154 024 18	Accumulator Buttom	2
27.3	152 254 88	G152 254 88	Diaphragm	2
27.4	807 590 69	G807 590 69	Valve	2
27.5	869 733 29	G869 733 29	O-Ring	2
27.6	851 682 19	G851 682 19	Protecting Cap	2
28	152 377 08	G152 377 08	LP Accumulator	1
29	800 538 69	G800 538 69	Hexagon Head Screw	6
30	551 815 22	G551 815 22	Bolt	4
31	850 687 49	G850 687 49	Double Lock Washer	8
32	445 798 90	G445 798 90	Hexagon Socket Head Screw	2
33	851 282 09	G851 282 09	Double Lock Washer	2
34	850 680 59	G850 680 59	Hexagon Head Screw	4
35	818 735 39	G818 735 39	O-Ring	2
36.1	BG006 590 58	GBG 006 590 58	Housing, Flushing Head	1
36.2	550 229 60	G550 229 60	Bushing, Bearing	1
37	550 381 10	G550 381 10	Cover, Front	1
38	550 381 12	G550 381 12	Bushing, Shank	1
39	550 277 42	G550 277 42	Housing, Seal	1
40	550 277 37	G550 277 37	Fitting, Flange	1
41	550 277 40	G550 277 40	Fitting, Flange	1
42	522 057 60	G522 057 60	O-Ring	3
43	522 053 50	G522 053 50	O-Ring	1
44	550 278 14	G550 278 14	Plate, Gasket	1
45	550 278 15	G550 278 15	Plate, Gasket	2
46	550 349 19	G550 349 19	Rod Seals	5
47	AF0 050 0565	GAF0 050 0565	Screw, Socket Head, Hexagon	4
48	AF0 050 0563	GAF0 050 0563	Screw, Socket Head, Hexagon	4
49	AF0 300 0032	GAF0 300 0032	Washer, Lock, Pair	8
50	871 692 89	G871 692 89	Plug	1
51	AF1 015 0011	GAF1 015 0011	Adapter	1
